Penyelesaian pengecasan automatik sepenuhnya
MIR500 boleh dikenakan secara bebas di stesen pengisian.
|

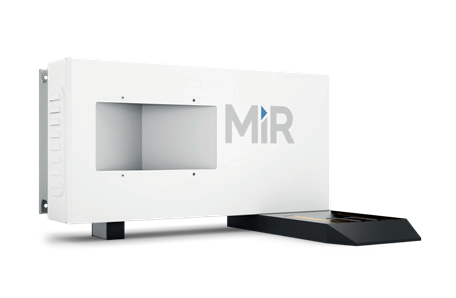

Automatic charger for MiR robots |

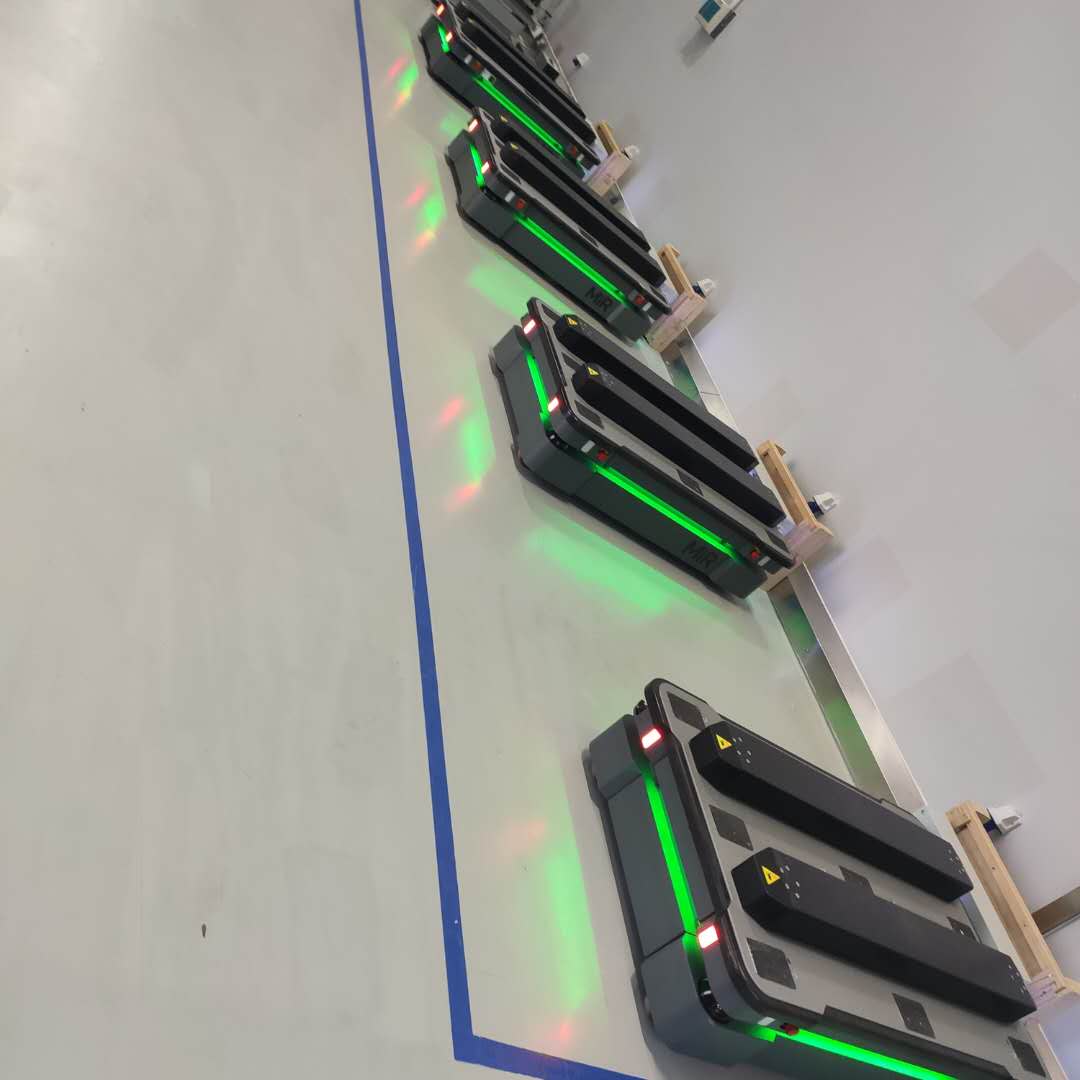

Robots can go to charging stations to complete charging |
|
width |
620 mm |
|
height |
340 mm |
|
depth |
200 mm（Depth of charging pad：480 mm） |
|
weight |
21 kg |
|
Wall mounted installation |
Install to be level with the ground |
|
Above ground installation height |
From ground to bottom edge：45 mm / 1.8 in |
|
Environmental temperature range |
+5°C ~ 40°C |
|
humidity |
10-95 %，non-condensing |
|
power |
output。 240V：48V/40A；120V：48V input： 100 V-240 V，50-60 Hz |
|
standard |
EN 60204-1 |
